A 70 year old man with exercise intolerance.
Complete Heart Block

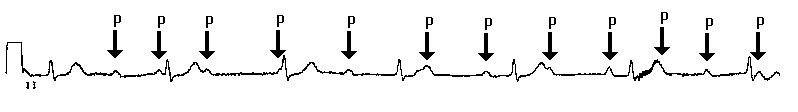

- P waves are not conducted to the ventricles because of block at the AV node. The P waves are indicated below and show no relation to the QRS complexes. They 'probe' every part of the ventricular cycle but are never conducted.
- The ventricles are depolarised by a ventricular escape rhythm.
